H16125CSGS

  • 产品描述

    10/100 BASE-T SINGLE PORT MAGNETICS MODULE

    Part number: H16125CSGS

    Feature

      Compliant with IEEE 802.3u

      Comply with ROHS requirements.

      Wave soldering peak temperature 250℃

      Operating temperature 0~+70℃

    Electrical Specification at 25℃
    OCL: 350uH Min. @100KHz/0.1V with 8mA DC Bias
    Hi-POT : 1500Vrms
    Turn Ratio: 1:1±3%
    LK: 0.5uH Max @100KHz/0.2V
    Cw/w 28PF Max @100KHz/0.2V
    D.C.R: 1.4 ohm Max
    Insertion Loss: 1.1dB Max: 1-100MHz
    Cross Talk : 30dB Min : 1-100MHz
    Return Loss: 18dB Min 1-30MHz
    18-20log(f/30)dB min 30-100MHz

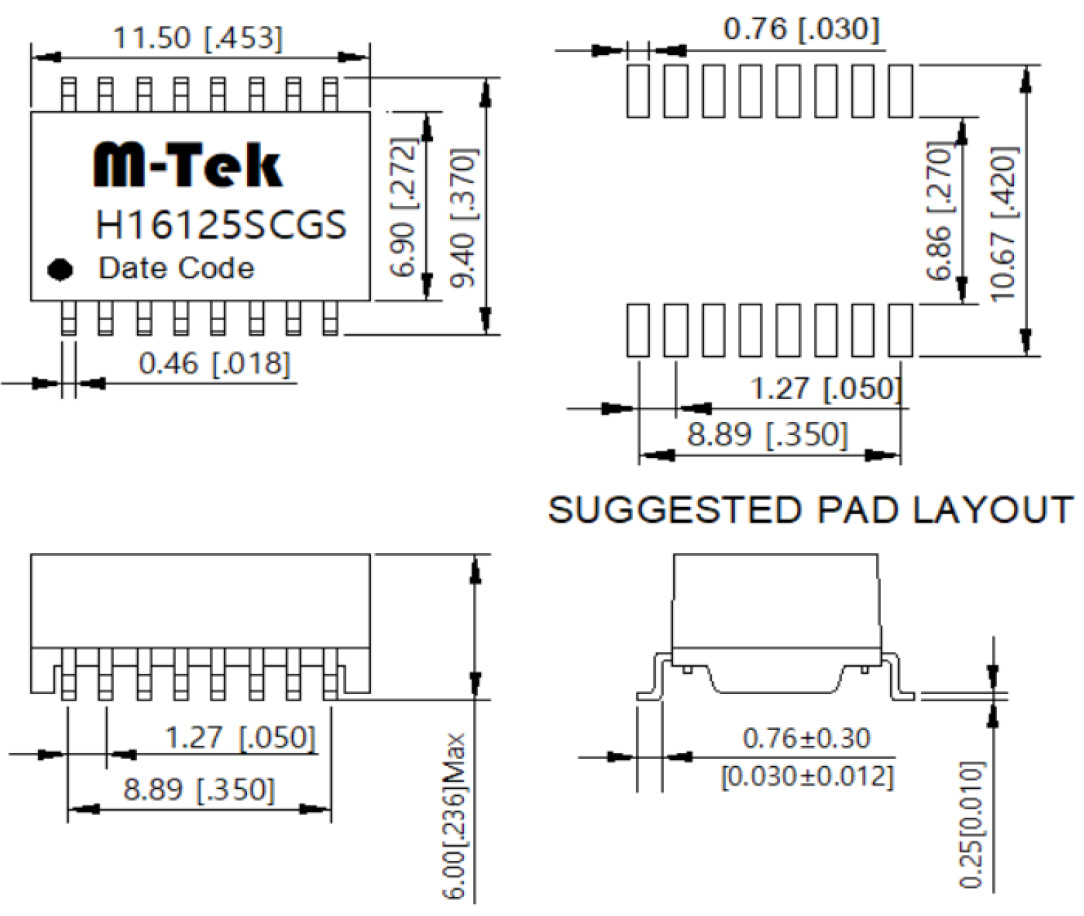

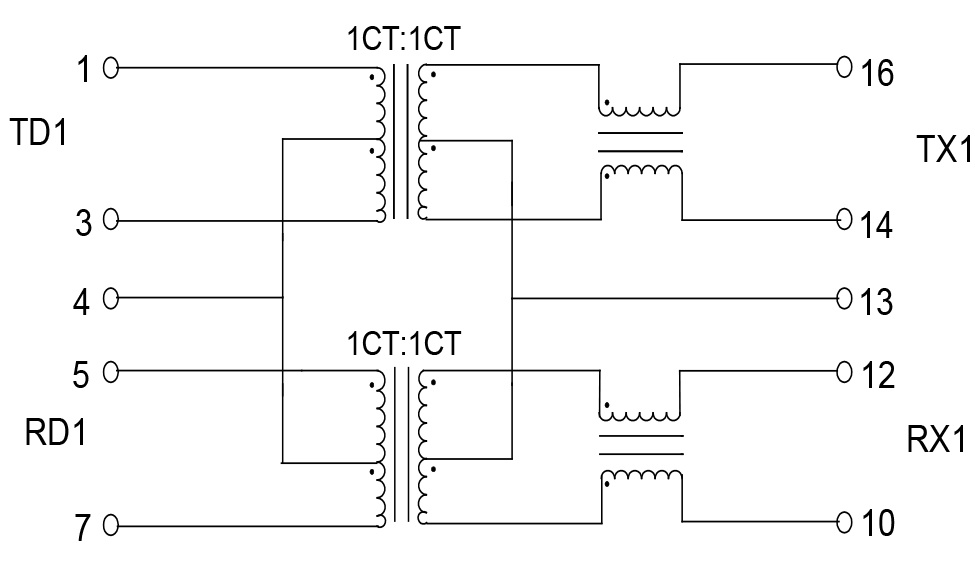

    Schematics Machinical Dimensions
